SM-R630 an instruction manual Smart wearable devices
Product Parameters
· Bluetooth Version: V6.0
· Transmission Distance: 10 meters
· Charging Interface: Type-C
· Bluetooth Frequency: 2402-2480 MHz
· Rated Input: DC 3.7V
· Charging Time: 1 hour
· Music Playback Time: 4.5 hours
· Talk Time: 4.5 hours
· Headphone Battery Capacity: 35 mAh
· Battery Capacity of the Charging Case: 220 mAh
Solution chip: Zhongke 5656C
Antenna: Ceramic antenna
Headphone battery: 30 mAh
Charging case battery: 200 mAh
The charging case board is equipped with a protection IC
Speaker: F13 copper ring
Appearance: UV finish
Touch - control type
High - end version: with wireless charging and Hall switch
Packaging content
• Earplugs (L, R)
• USB data cable
• Earplug tips (small, medium, large)
• Charging protection box
• operation instructions
Equipment location diagram

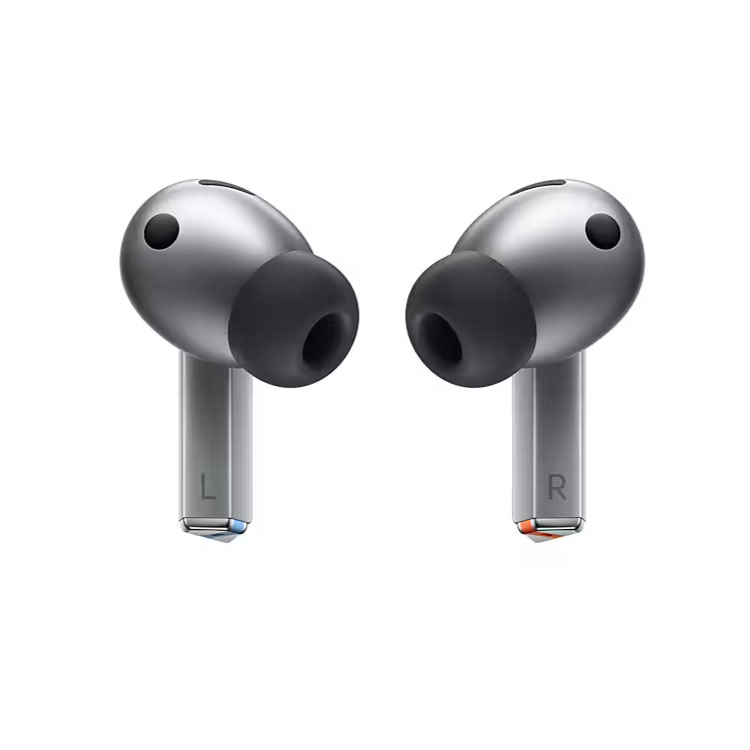

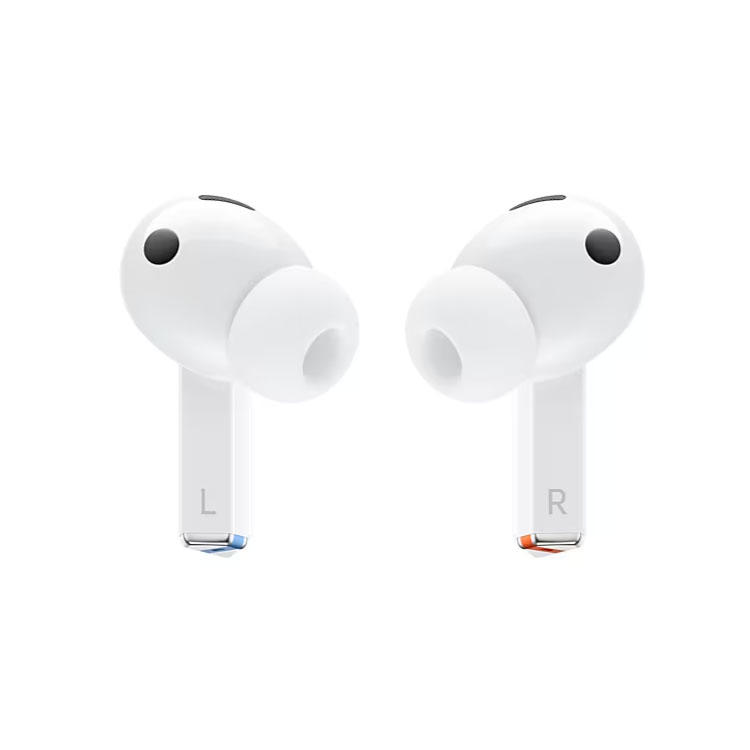

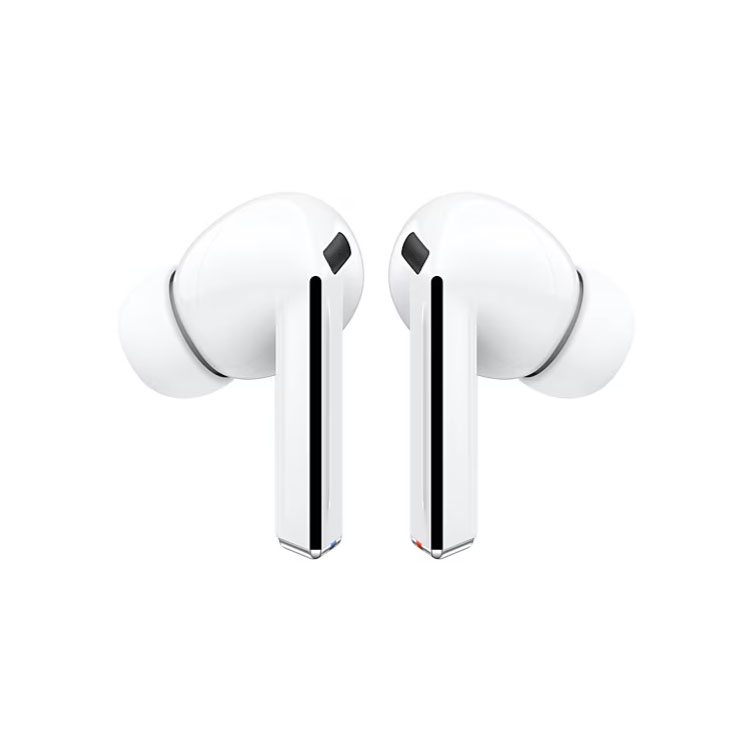

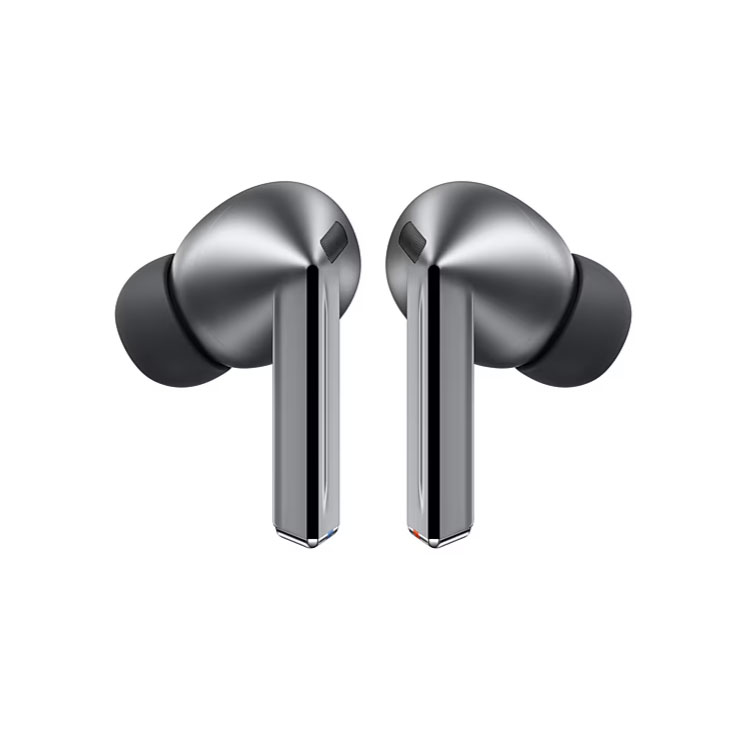

Earplugs
• Microphone
• Touch sensor
• Earplug tips
• Speaker/Microphone
• Charging connector
• Microphone
• Pinch area
• Sliding area

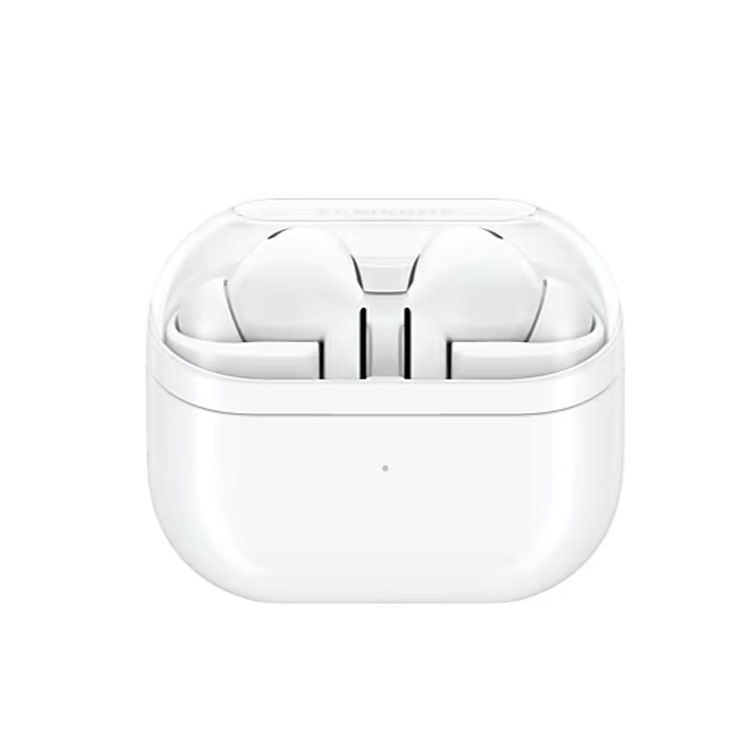

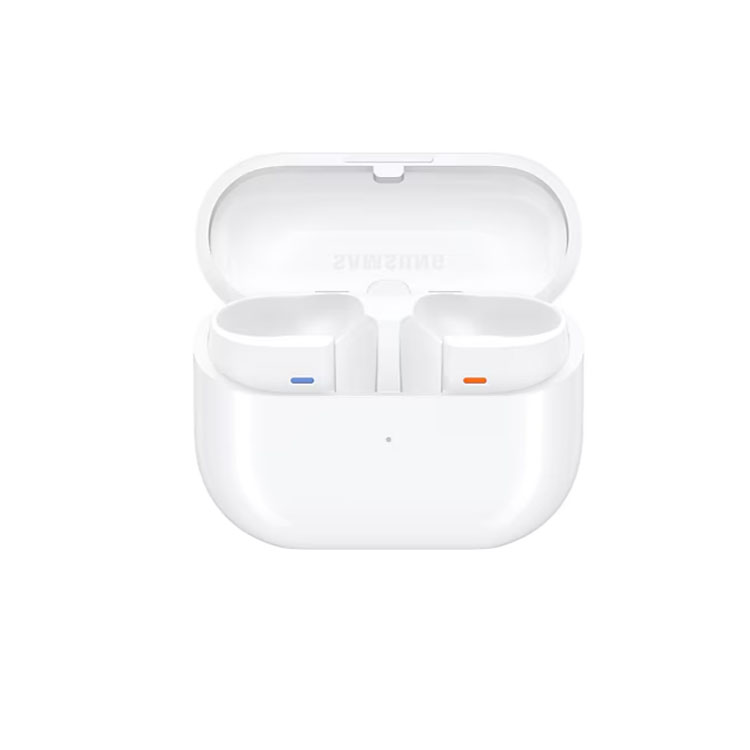

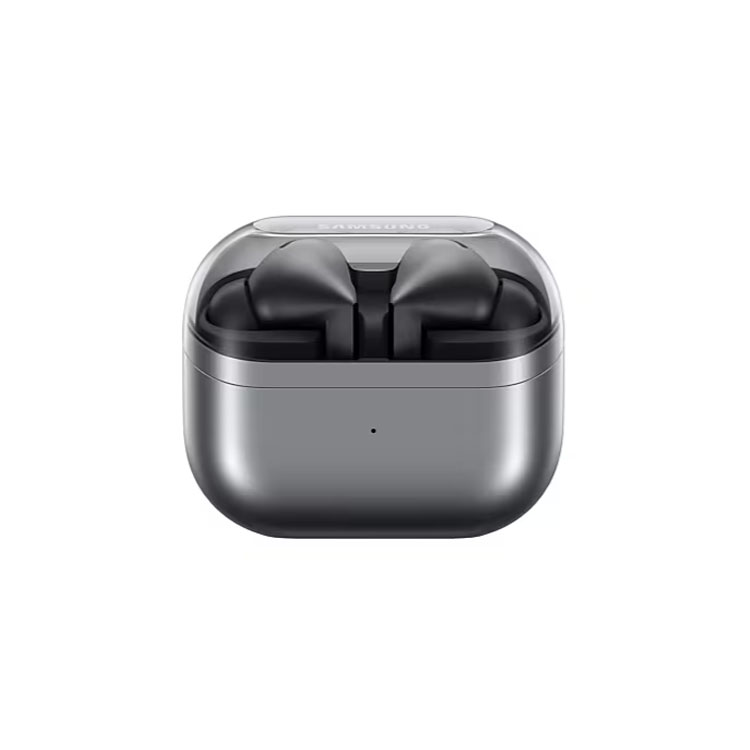

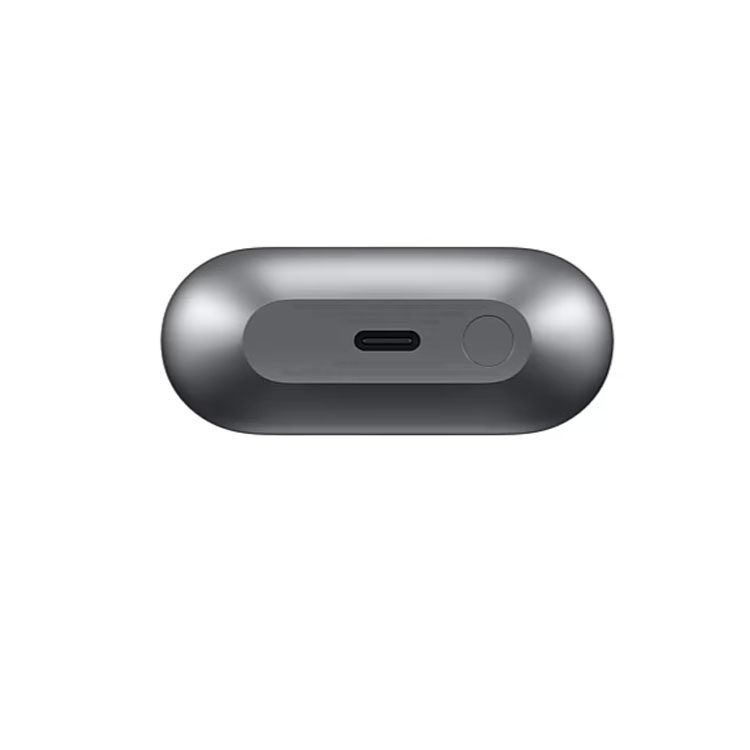

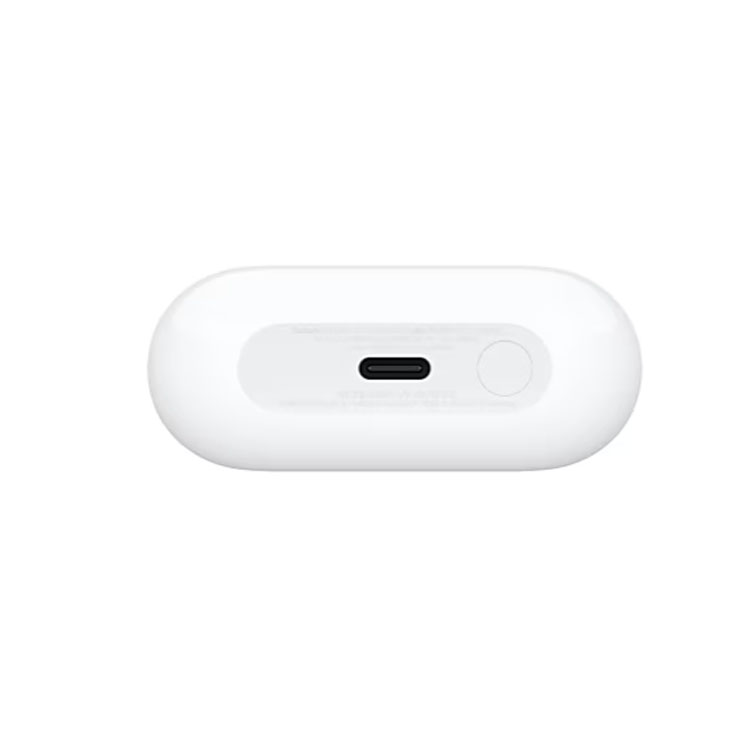

Charging protection box
• Charger socket (C-type USB)
• Battery indicator light
• Connect button
Charging
Insert the earplugs into the charging protection box and close them. Connect the USB data cable Connect to the charger socket of the charging protection box to start charging.
Earplugs and The batteries in the charging protection box will charge simultaneously.
• Store earplugs, charge earplugs, or charge the charging protection box. When powered on, please turn off the charging protection box.
• If you touch the charging device while charging the charging protection box The connector may affect charging.
Connect to mobile devices
Press the bottom button, and when the green light on the charging box comes on, take out the earphones to pair, find Buds3 Pro in the Bluetooth settings of your phone
and connect it
